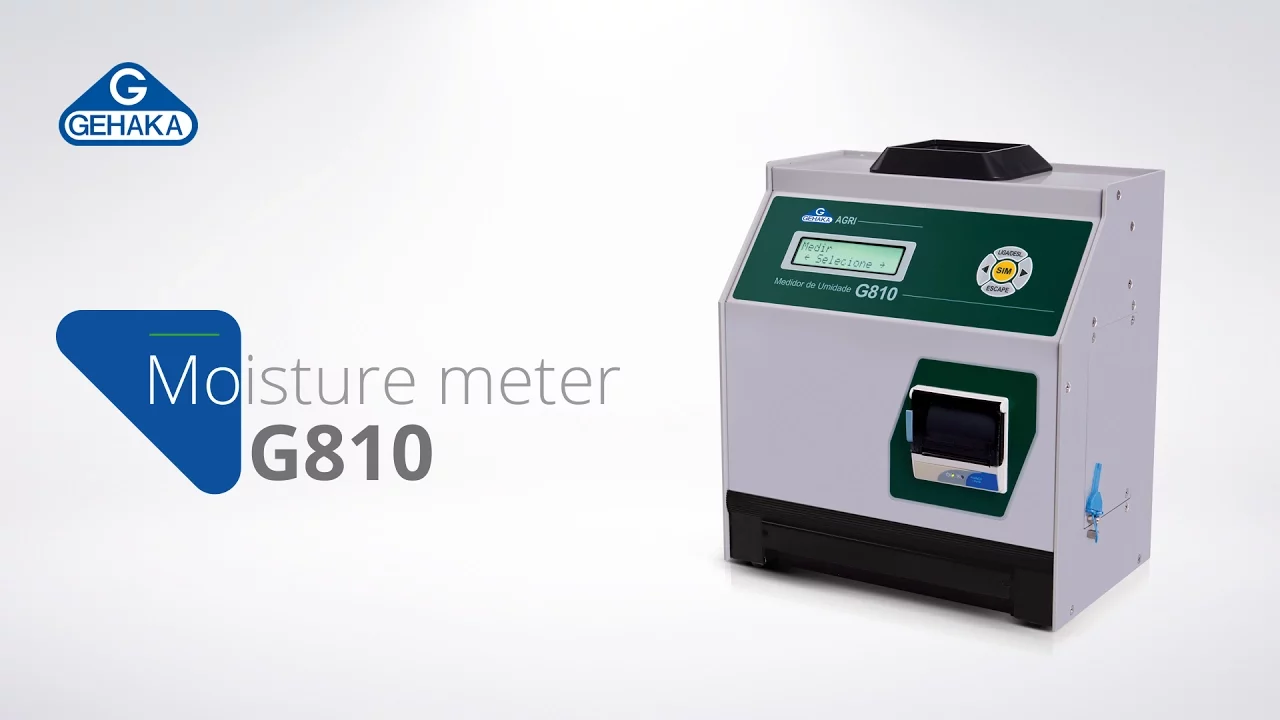

The moisture testers G810 Series gather all the features necessary to provide the accuracy of moisture measurement of grains and seeds, according to the quality standards required by national and international regulatory organizations.
With a simple operation, without operator interference, the G810 testers provide the moisture reading of the sample in seconds, for a wide range of products.
Absolute precision, guaranteed through the new auto calibration function, which adjusts the measuring system before each measurement.
The G810 Series enables updating and selection of calibration curves via the Internet, through the unique system created by Gehaka.
G810 IP - With built in compact thermal printer.
Actually the defaults commodities calibrations are 68, but the G810 can accommodate up to 250 scales.
The calibration curves were created at the manufacturer laboratory based on the internationals standard methodologies, issued by ISO, AACC, AOCS and ASABE.
These calibrations are re-evaluated every year considering all types of grains produced in Brazil and also in others countries.
A new algorithm quickly performs the automatic moisture compensation, based on the temperature difference between the sample and the tester.
The G810 calculate all necessary corrections and indicate at the alphanumeric display in the following readings of test sample:
• The sample moisture percentage (%U).
• Approximate sample density (kg/Hl).
• Temperature (ºC or ºF).
After each measurement the G810 generate reports that can be printed or transferred to a system recording of all measurement parameters, such as, sample moisture content; approximate sample specific weight; sample and tester temperatures; date and time; product name; sample weight; tester serial number; firmware, hardware and commodity calibration versions, according to the ISO / GLP and GMP procedures.
| External dimensions (W x H x D) | 345 x 311 x 192 mm |
| Indication of the specific weight | From 1 to 50%, depends of the product |
| Instrument net weight | 5,7 kg |
| Operating temperature | From 0º to 50º C |
| Power source | Automatic input from 90 to 240 VAC 50/60 Hz - Out put 5 VDC |
| Sample weight | Depends of the product |
| Type of port communication | Standard RS 232 C |
| Warranty | One year |
